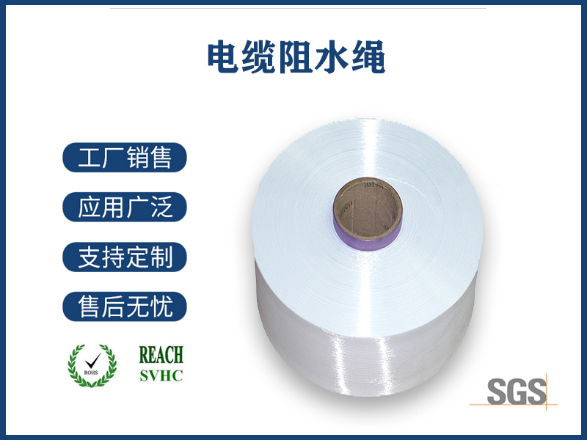

阻水繩

[產品說明]:阻水繩是由工業(yè)滌綸長絲、高分子膨脹吸水樹酯和粘合劑組成。

Product Description: The water blocking yarn consists of industrial polyester filament, macromolecule swelling water absorbing tree ester and adhesive.

[應用方式]: 主要用于光纜、通信電纜、扇形線芯電力電纜，海底電纜等各部件之間的阻水填充作用。

Application: It is mainly used for water blocking and filling between optical fiber cable, communication cable, fan-shaped wire core, power cable, submarine cable and other parts.

一、主要技術指標：

Main specification:

產品規(guī)格Specification	基重Basis weight（m/kg）	斷裂強度Breaking Strength（N）		膨脹速率Swelling rate(ml/g/1st min)	長期耐溫膨脹率Long-term thermal expansion rate	瞬間耐溫膨脹率Transient thermal expansion rate	含水率Melting point
700D	12857	≥50	15↓	≥60	≥65	≥65	9↓
1500D	6000	≥50	15↓	≥60	≥65	≥65	9↓
2000D	4500	≥60	15↓	≥60	≥65	≥65	9↓
2500D	3600	≥70	15↓	≥60	≥65	≥65	9↓
3000D	3000	≥100	15↓	≥60	≥65	≥65	9↓
4500D	2000	≥150	15↓	≥55	≥65	≥65	9↓
6000D	1500	≥200	15↓	≥50	≥55	≥55	9↓
9000D	1000	≥250	15↓	≥45	≥55	≥55	9↓
18000D	500	≥300	15↓	≥40	≥50	≥50	9↓
除以上規(guī)格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers

二、顏色：白色

Color: White

三、電氣特性：阻水繩具有良好的吸水性能，抗拉力強，無腐蝕性，并且不含酸堿。

Electrical characteristics: Water blocking yarn has good water absorption performance, strong tensile resistance, no corrosion, and no acid and alkali.

四、包裝方式：紙箱包裝，每箱24KG。

Packaging: Carton package, 24KG per package.
