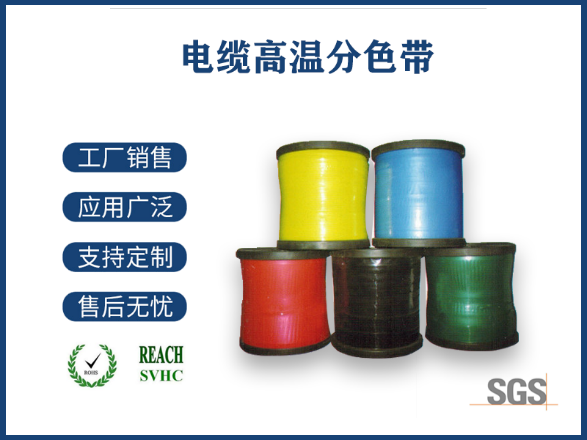

[產品說明]: 以PET為基材加工而成，光滑、無皺折、無扭結、無孔洞、無裂口、無雜質、邊緣整齊。
Product Description: Based on PET material, smooth, wrinkle-free, no kinks, no holes, no nicks, no impurities, edge neatly.
[應用方式]: 主要用于電力電纜、交聯電纜分色用，取代絕緣或護套中的色母粒，可節約大量的成本。
Application: Mainly used for power cables, XLPE cables, replace the master batch of insulating or sheathing, can save a lot of costs.
一、主要技術指標：
Main specification:
| 寬度Width(mm) | 產品規格Specification(μm) | 拉伸強度Tensile strength（Mpa） | 伸長率Elongation（%） | 熱收縮率Heat shrinkage（%） | 瞬間耐溫Instantaneous temperature(℃) |
| 2.0±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180-230 |
| 3.0±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180 |
| 4.5±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180 |
| 7.0±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | |||||
二、顏色：紅色、黃色、藍色、綠色、黑色及其它兩種顏色組合的雙色。
Color: Red, yellow, blue, green, black and other two colors combination.
三、電氣特性：可承受瞬間230℃高溫，可在擠出護套時直接穿進機頭隨塑料一同從機頭拉出來，在通過硫化管道時不褪色。
Electrical characteristics: Affordable instant 230 ℃ high temperature extruded sheath directly into the nose from the head along with the plastic out by vulcanization pipe and does not fade.
四、包裝方式：塑料軸裝，內徑25mm，外徑120mm，高125mm，紙箱包裝。
Packaging: Plastic shaft, inner diameter is 25mm, outer diameter is 120mm, the high is 125mm, carton packaging.
