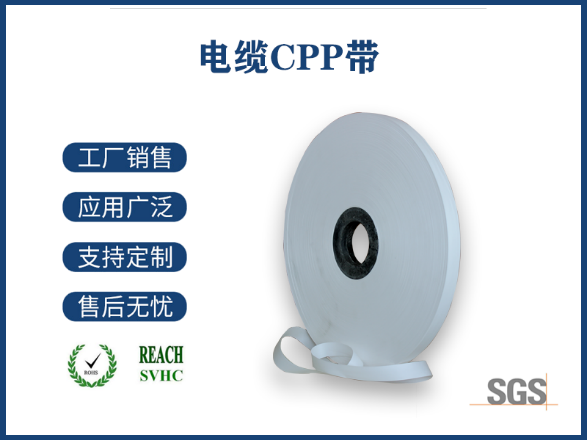

[產品說明]: CPP帶耐熱性能良好，纏繞捆扎性能穩定可靠，具有一定的阻燃性，利用高分子結晶特性進行了粗化處理，改掉了聚酯(PET)、BOPP帶不防滑的缺點，成本低廉，已成為目前其它各類型繞包帶的替代產品。
Product Description: CPP with a good heat resistance, wrapping and banding performance is stable and reliable, has fire-resistant property, rough treatment by using polymer crystallization characteristics, get rid of polyester (PET), BOPP tape may wish-slip faults, low cost, and has become alternative products in other wrapping tape.
[應用方式]: 主要用于電力電纜、控制電纜、交聯電纜、礦纜、通訊電纜等繞包。因厚度比無紡布和PVC帶等要薄很多，單盤繞線長度且繞線緊密，能有效減少停車次數，降低工人的勞動強度，大幅降低的電纜的生產成本。
Application: Mainly used for wrapping in power cable, control cable, cross-linked cable, mining cable, communication cable. Due to thickness is much thinner than non-woven tape and PVC tape, length of single coiling line and coiling tightly, can reduce the number of stops, reduce the labor intensity of workers, reducing the production costs dramatically of the cable.
一、主要技術指標：
Main specification:
| 產品規格Specification(mm) | 基重Basis weight（g/cm3） | 縱向拉伸強度Tensile strength(MD)（Mpa） | 縱向斷裂延長率Elongation at break(MD)（%） | 體積電阻Volume resistance（Ω·cm） | 介電強度Dielectric strength（KV/mm） | 使用溫度范圍Temperature range(℃) |
| 0.08±0.02 | 0.92±2 | ≥100 | ≥30 | ≥1*1014 | ≥140 | -30~200 |
| 0.10±0.02 | 0.92±2 | ≥100 | ≥30% | ≥1*1014 | ≥140 | -30~200 |
| 0.12±0.02 | 0.92±2 | ≥100 | ≥30% | ≥1*1014 | ≥140 | -30~200 |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | ||||||
二、顏色：白色，綠色，藍色，紅色。
Color: White, green, blue, red
三、電氣特性：耐化學腐蝕，高中頻絕緣性能很好，使用溫度范圍大，高溫下熱收縮率小。
Electrical characteristics: Chemical resistant, high-frequency insulation property is very good, temperature range is wide, and heat shrinkage is small at high temperatures.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
